BM 18.1 BLOCK MAKİNG MACHİNE

Our BM 18.1 concrete block production plant is equipped with a fully automatic production line. The average production cycle is under 20 seconds, enabling up to 1,500 press cycles in an 8-hour shift. The BM 18.1 uses a 1450 × 1350 pipe-leg pallet.

This capacity allows the production, per 8-hour shift, of:

  • 26,000 units of 20 × 40 × 20 cm concrete blocks

  • 30,000 units of 15 × 40 × 20 cm concrete blocks

  • 32,000 units of 10 × 40 × 20 cm concrete blocks

If desired, by attaching a paving mold, the machine can produce 1 m² of single-layer, single-color paving stones per press, depending on the model. Additionally, with the appropriate mold installed, curbstone production is also possible.

Product Details

You can review all the detailed technical specifications of our plant in the detailed description below.

The combiation of quality, speed, and technology: BM 18.1

Block Product Capacitys

Product Type

Distances

Pieces Product Per Press

PRESS İN ONE MINUTE

PRODUCT ON MINUTES

BLOCK

20X40X20cm

18 PIECE

3 PRESS

54 PIECE

BLOCK

15x40x20cm

24 PIECE

3 PRESS

72 PIECE

BLOCK

15x40x20cm

36 PIECE

3 PRESS

108 PIECE

INTERLOCK PAVE

16x20x6cm

36 PIECE (1 m²)

4 PRESS

108 PIECE

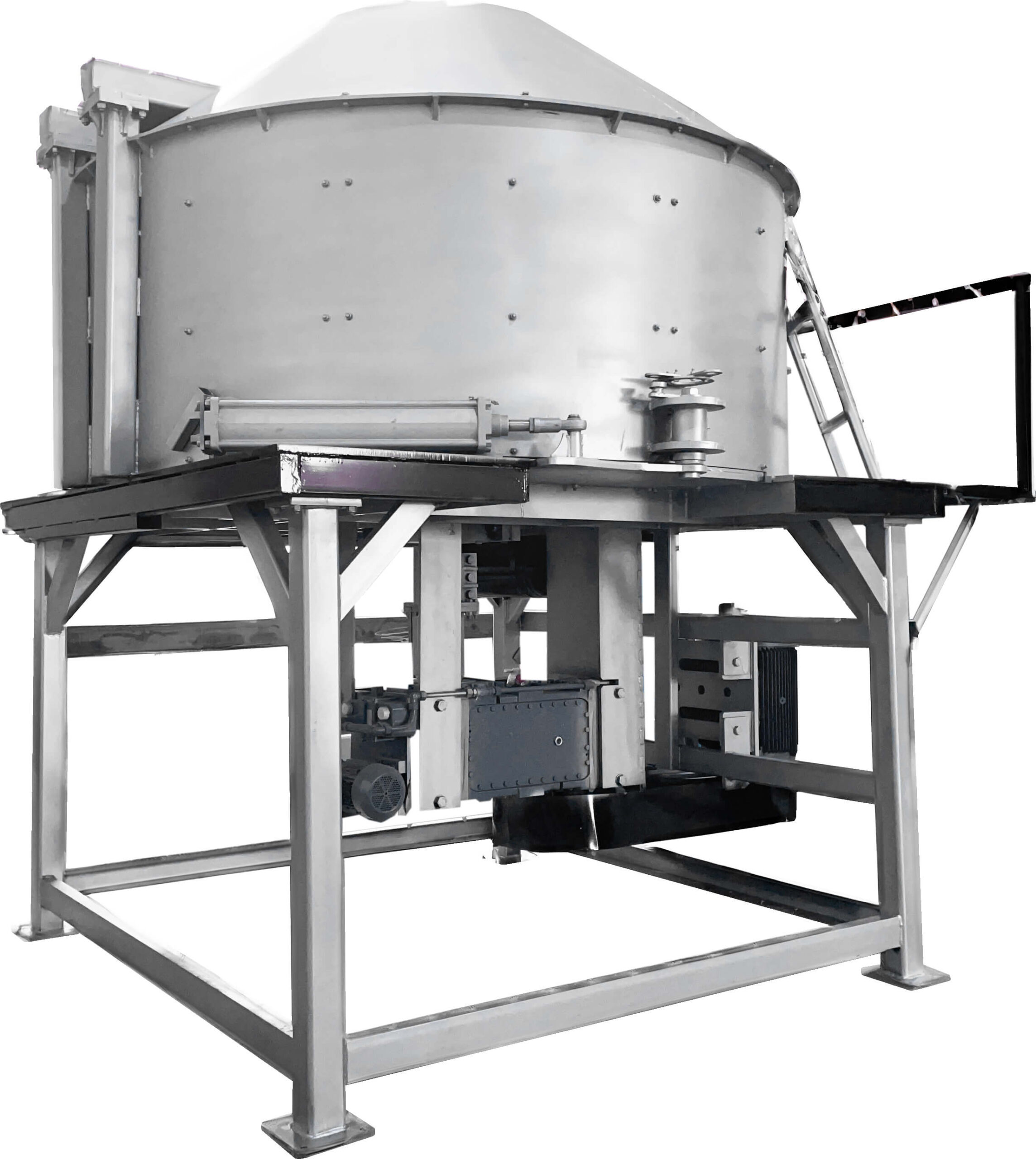

PAN MİXER 2.5 m³

English Translation – Mixer Technical Specifications:

  • Mixer Type: Pan Mixer

  • Drum Dimensions: 2.5 m × 1 m, 10 mm ST 52 steel (2 m³ capacity)

  • Internal Wear Plates: 10 mm ST 52

  • Mixing Arms: 30 mm thickness, 5 arms

  • Motor Power: 55 kW

  • Discharge Gate System: Pneumatic piston

  • Feeding System: Conveyor belt

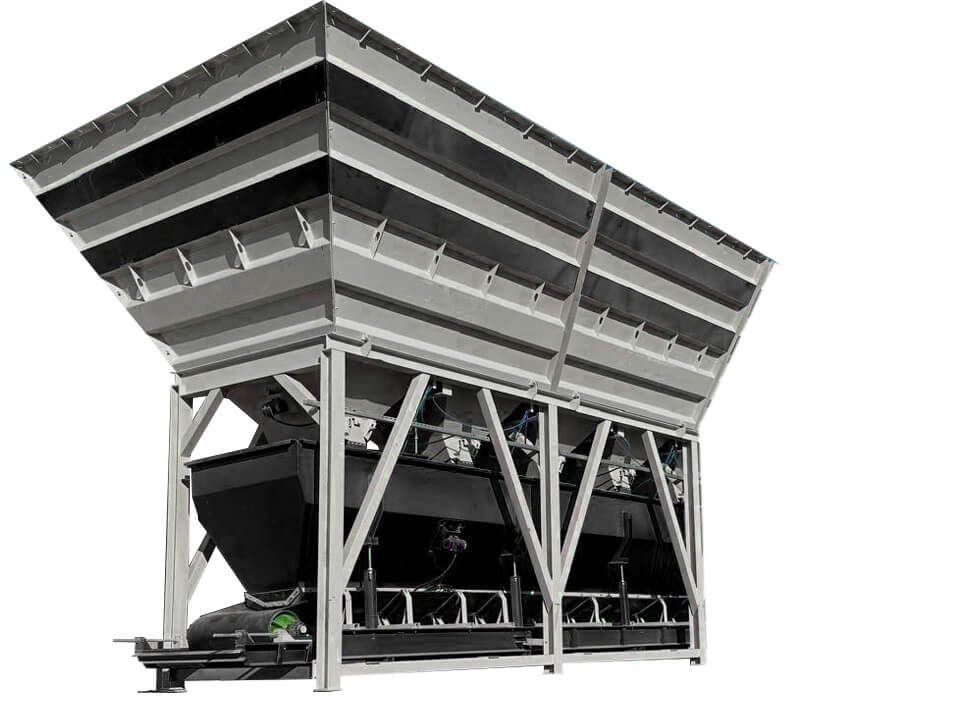

Raw Material Stock Bunker

Aggregate Hopper Technical Specifications:

  • Total number of bins: 2

  • Total raw material capacity: 20 m³

  • External chassis dimensions: 3 m × 2.5 m

  • Total depth: 3.5 m

  • Weight: 4 tons

  • Gate opening system: Pneumatic

  • Weighing system: Load cell

  • Raw material transfer system: Conveyor belt

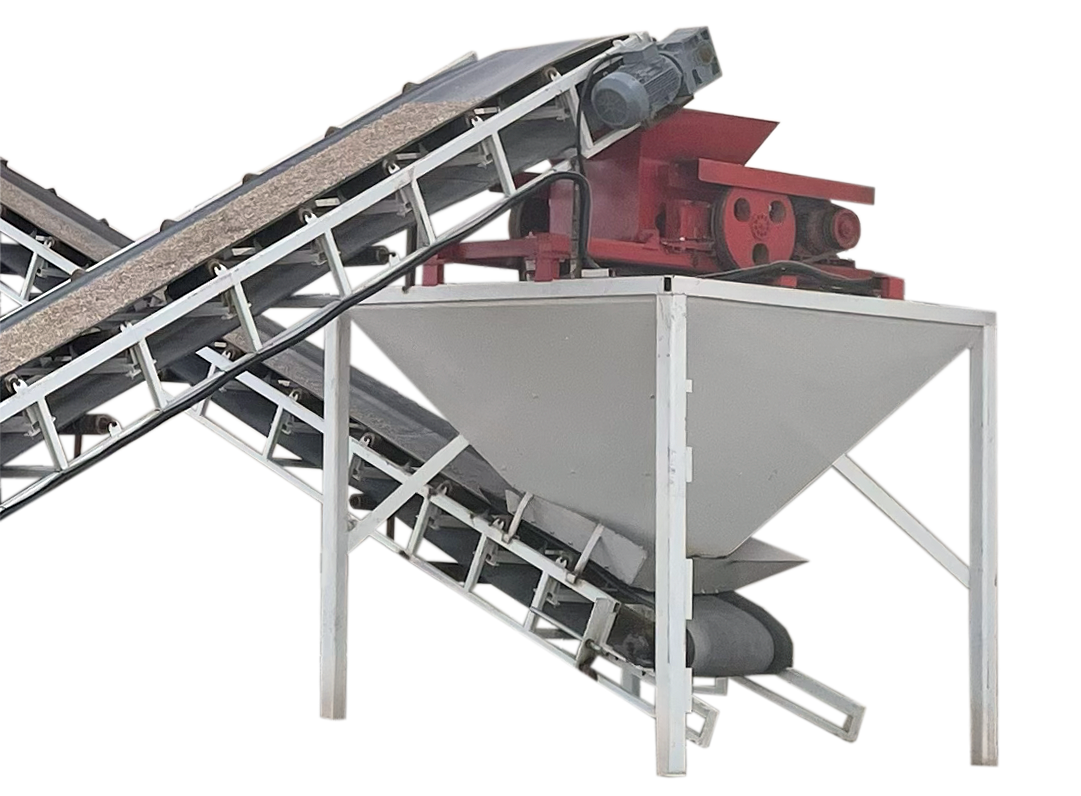

Pre-Mixer Crusher and Hopper

Crusher Technical Specifications:

  • Bunker capacity: 5 m³

  • Crusher speed: 700 RPM

  • Motor power: 7.5 kW

  • Roller diameter: 300 mm

  • Roller teeth: Welded alloy steel

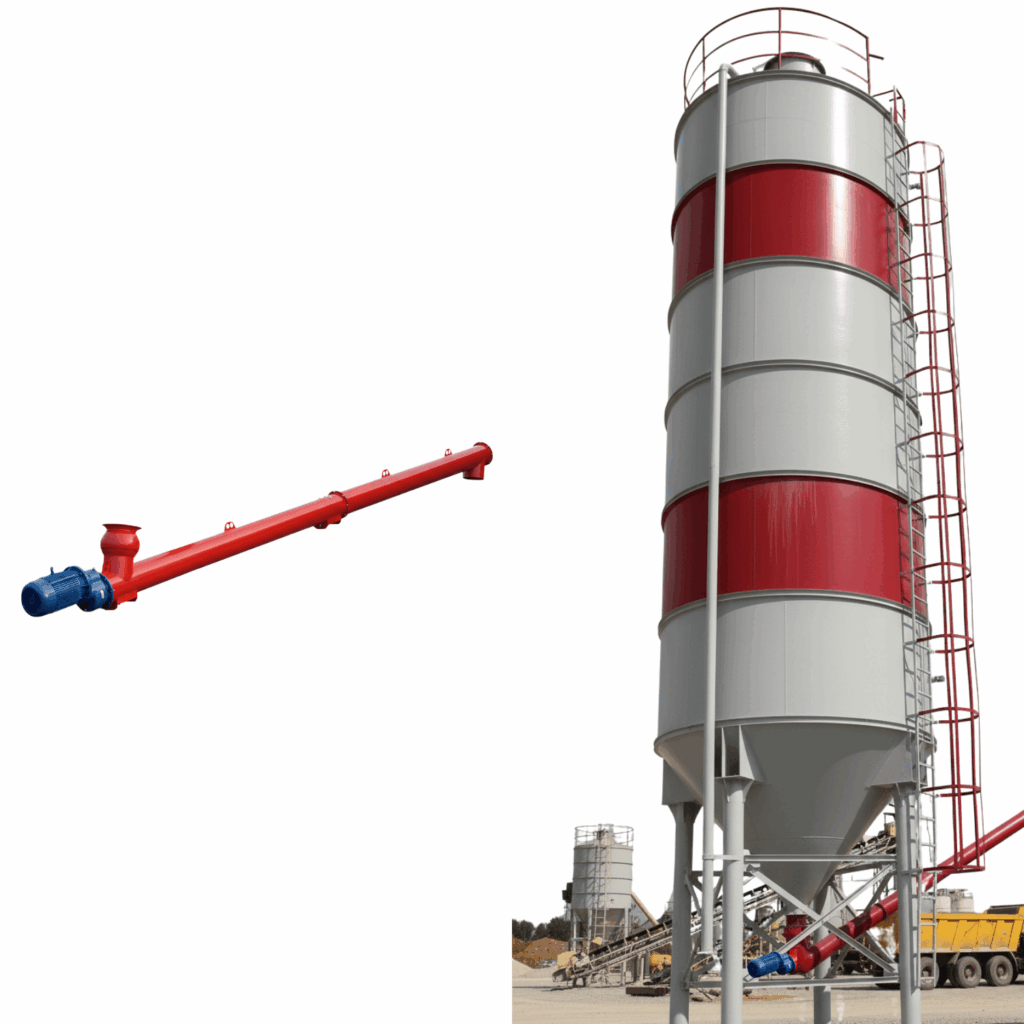

Cement Sylo & Helezone Pipe

  • Silo Technical Specifications:

    • Total silo capacity: 100 tons

    • Total silo height: 12 meters

    • Silo diameter: Ø 3 meters

    • Screw conveyor length: Varies according to site conditions

    • Screw conveyor diameter: 200 mm

    • Screw conveyor motor power: 4 kW

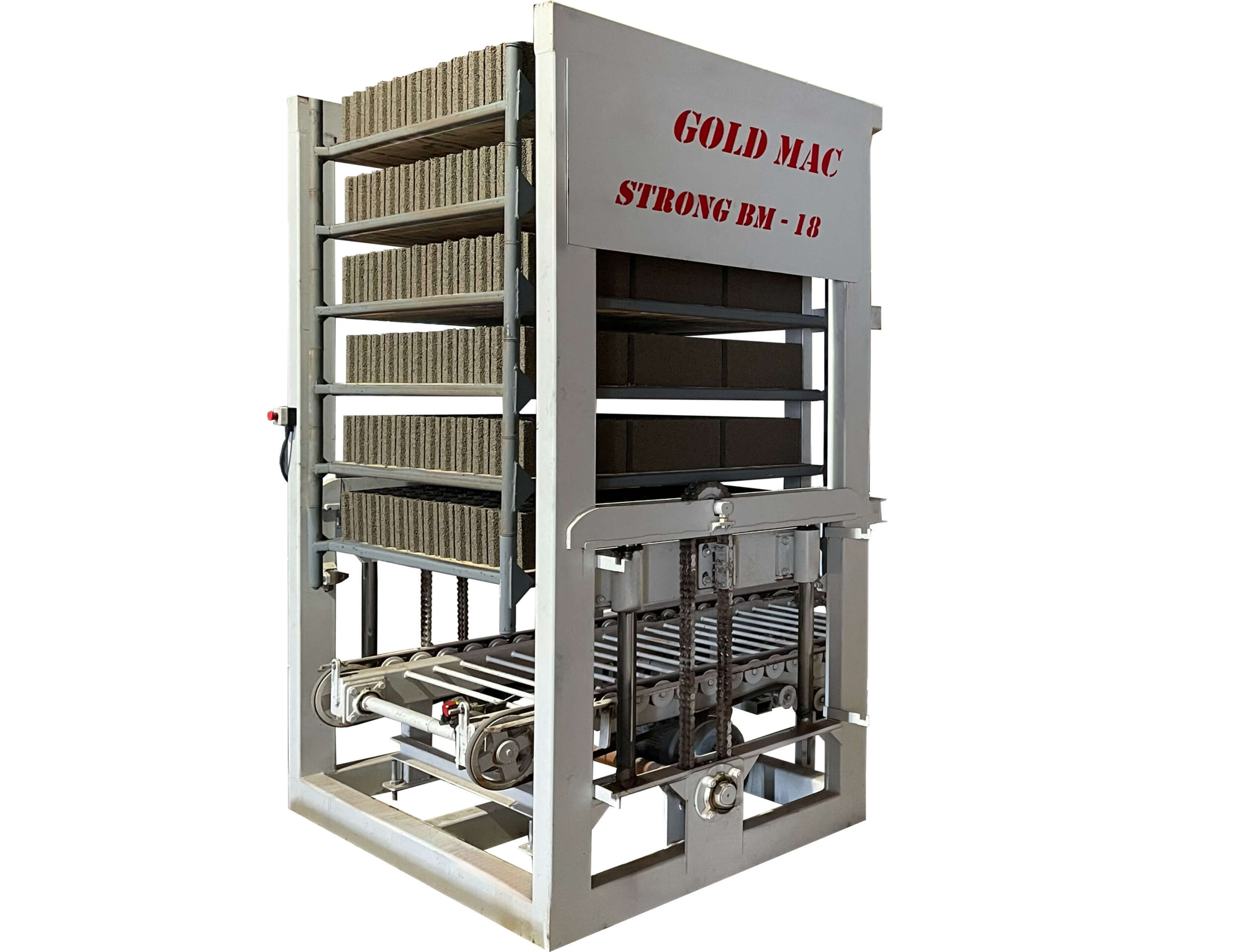

Front Stacker Robot

  • Pallet Stacking Elevator Specifications:

    • Stacking capacity: 7 pallets

    • Total elevator height: 3 meters

    • Lifting power: Motor & gearbox 11 kW

    • Dimensions: 2 × 1.4 meters

    • Chain-driven lifting system

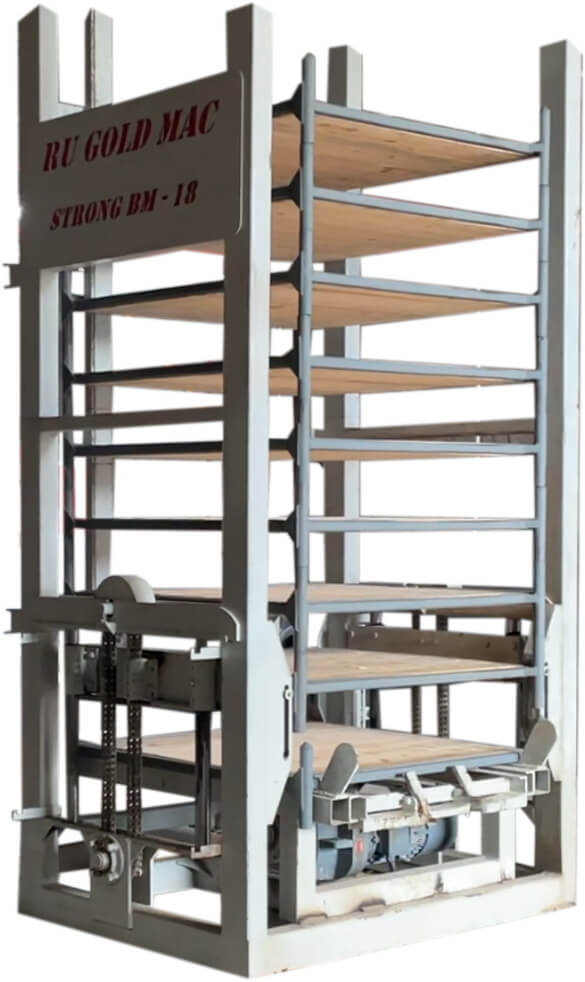

Rear Layering Robot

Rear Layering Robot Specifications:

  • Stacking capacity: 9 pallets

  • Total elevator height: 4.20 meters

  • Lifting power: Motor & gearbox 11 kW

  • Dimensions: 2 × 1.4 meters

  • Chain-driven lowering system

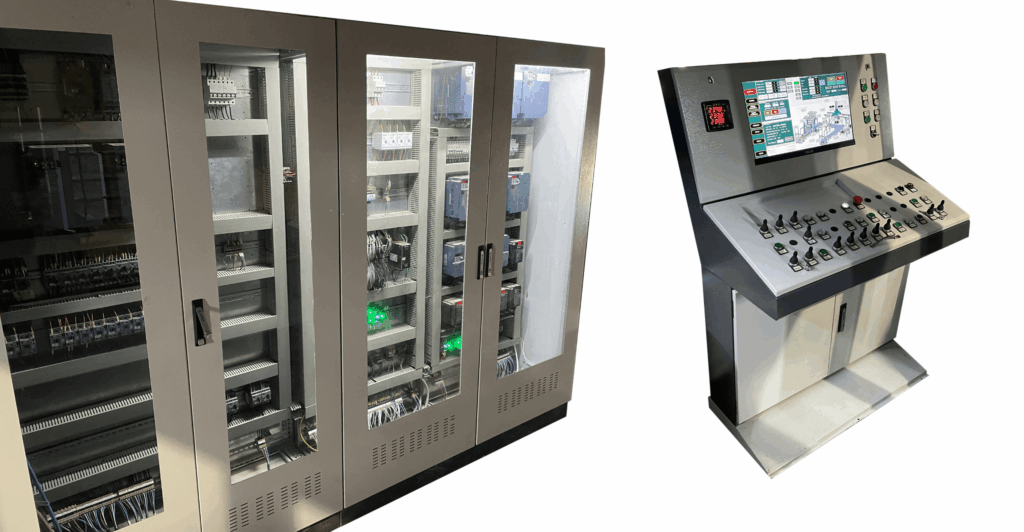

UPS & PLC PANNELS

Control System Specifications:

  • Total power: 250 kW

  • Components used: Siemens

  • Screen size: 21.5" LED display

  • PLC: Siemens

  • Remote access

  • Production reporting system

  • Customizable user interface

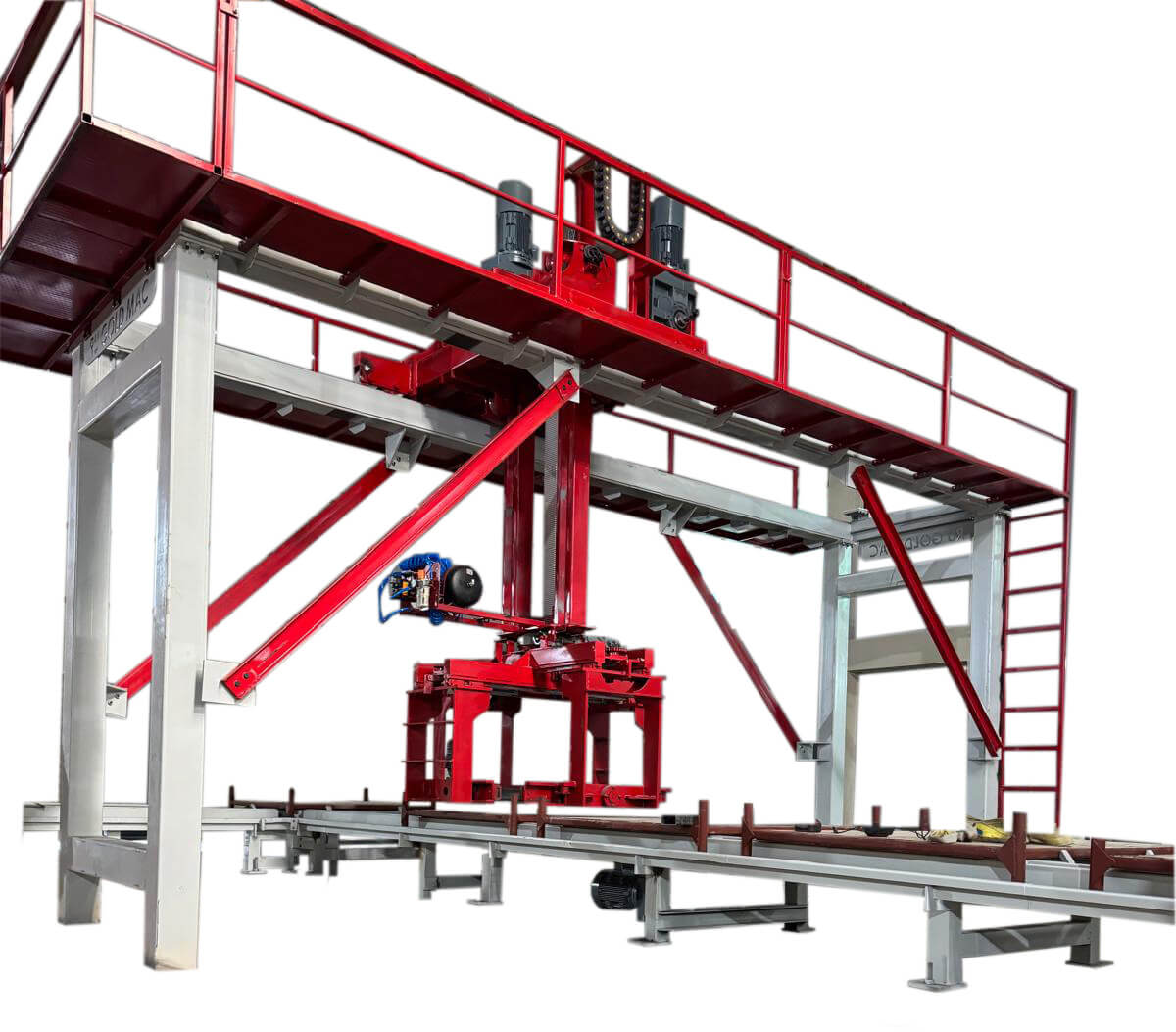

Collector Robot

  • Total height: 3.4 meters

  • Total width: 7 meters

  • Carrying capacity: 18 units of 20 × 40 × 20 cm blocks

  • Product flipping (NEW GENERATION): Flips the top layer of packaged products to prevent damage during transportation

  • Gripping system: Pneumatic

  • Movement axes: X, Y, Z

  • Forklift fork separation: Yes

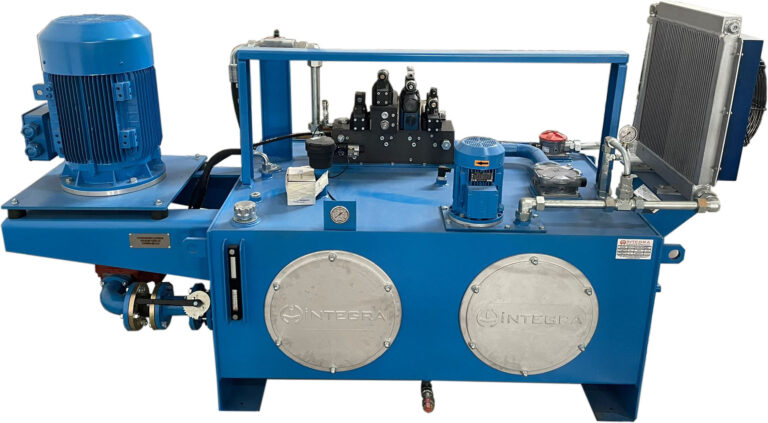

Hydraulic Oil Tank

Hydraulic System Specifications:

  • Total volume: 1,000 liters

  • Cooler: Included

  • Pressure: 140–160 bar

  • Filters: 3 oil filters, 1 air filter

  • Magnetic cleaning filter

  • Software-controlled speed and pressure

  • Variable flow piston pump

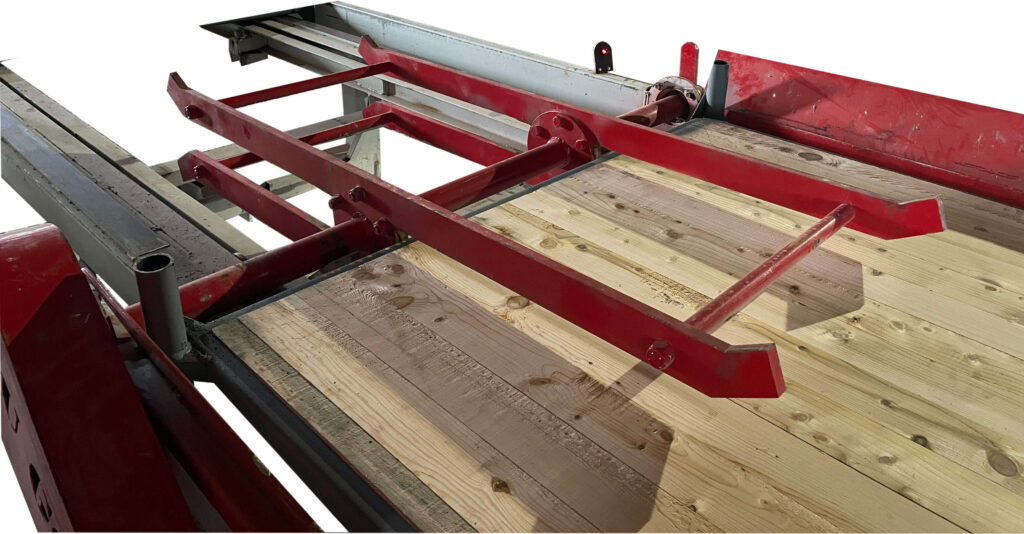

Pallet Rotater Robot



System that allows you to use both surfaces of the pallets.

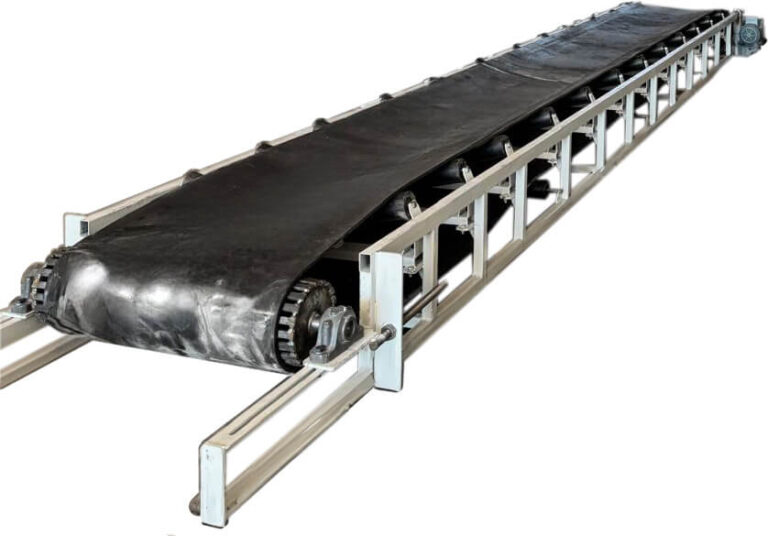

Conveyeur Belts

Conveyor Belt Specifications:

  • Height: 30 cm

  • Width: 80 cm

  • Length: May vary according to plant layout

  • Belt thickness: 10–12 mm

  • Motor power: 4 kW

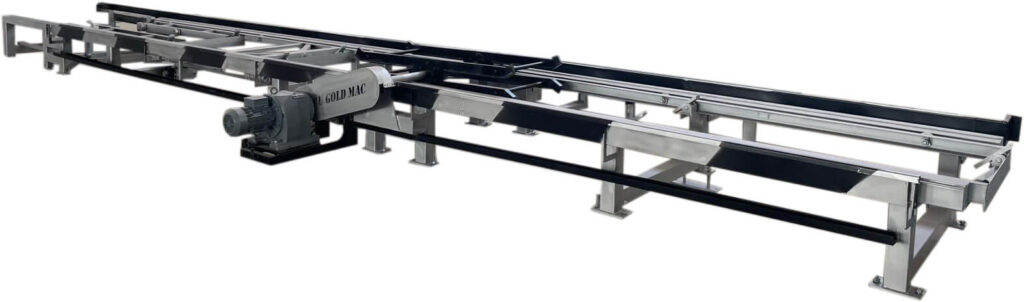

Pallet Carry Benchs

Rail system that transports pallets throughout the entire plant; its length varies according to the plant layout. The pallet flipping robot is located on this system.

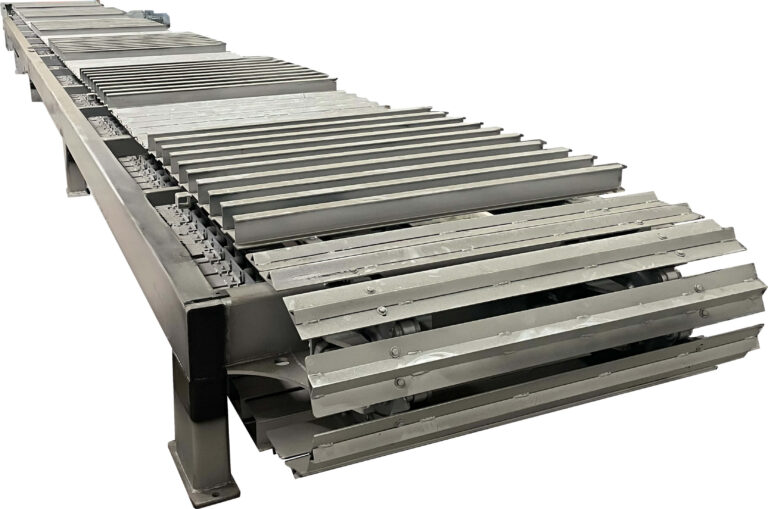

Block Carry Bench

Transfer Conveyor Specifications:

  • Length: 12 meters

  • Transfers products from the collector robot to the packaging cabin, and from there prepares them for the external transport area.

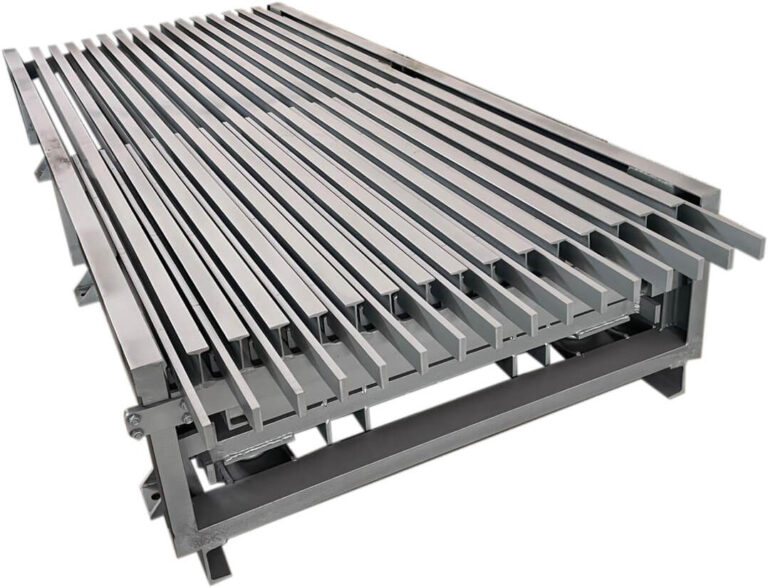

Block Seperator Bench

Prepares products to be transported by forklift without the need for a transport pallet (Euro pallet).

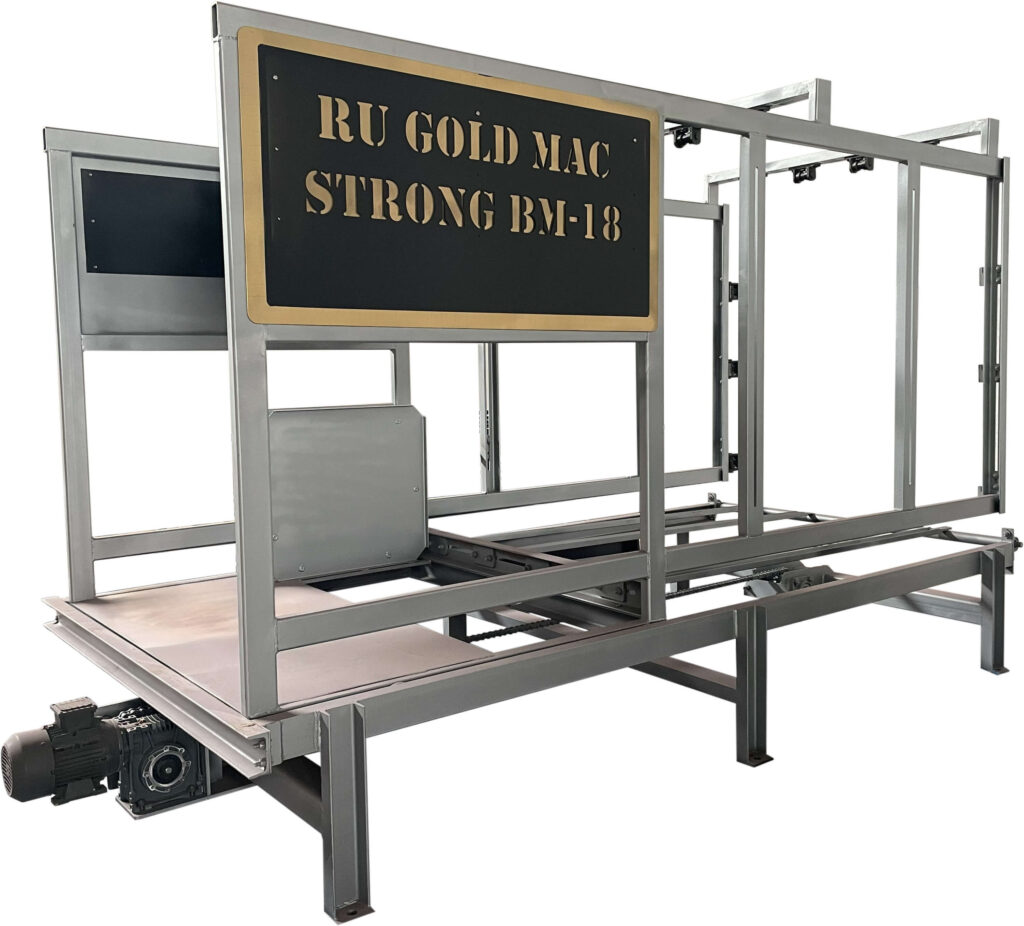

Strapping Cabin

Allows you to strap stacked products and prepare them for sale.

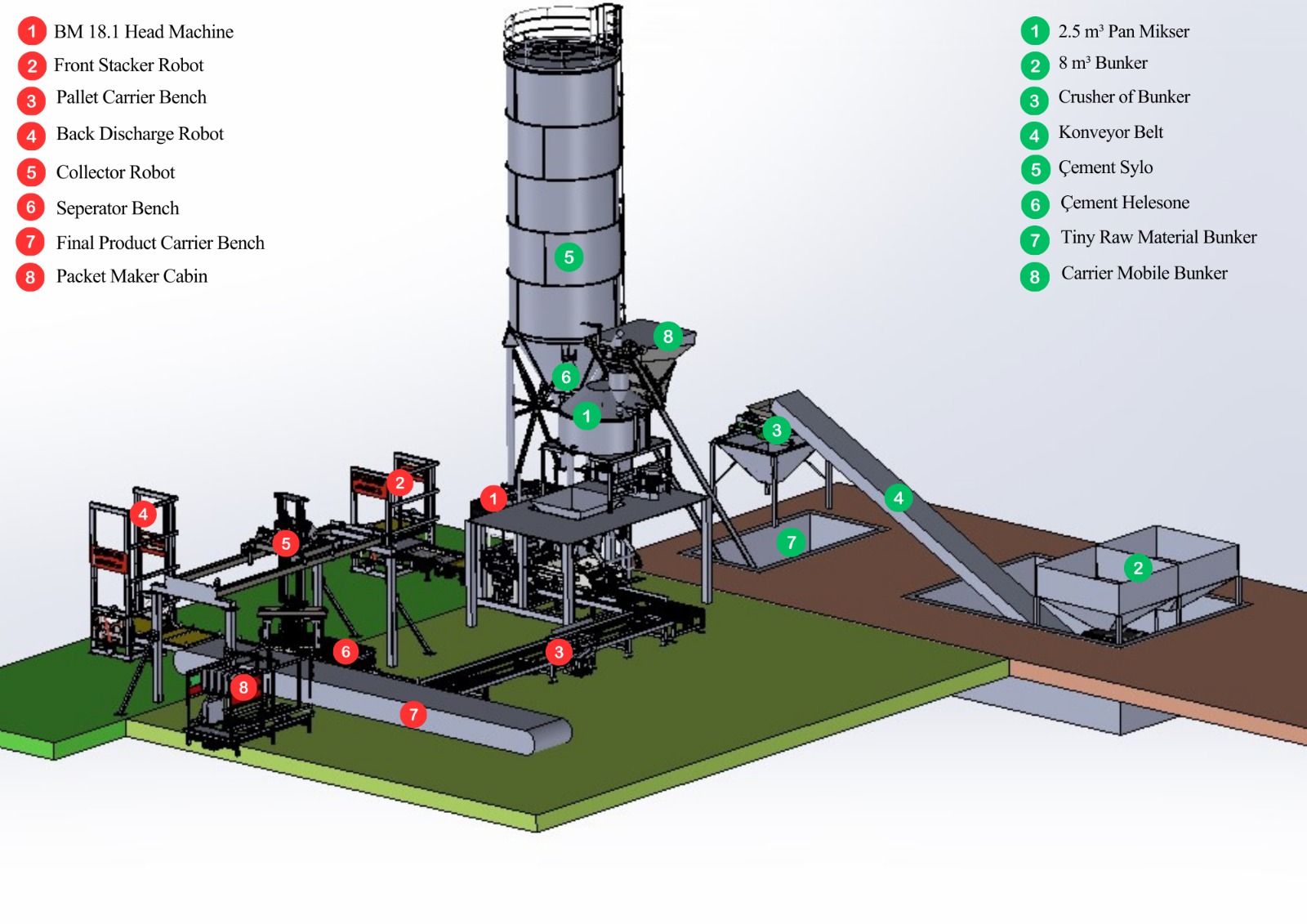

Installation Sheme
